Galvanized DB Adjusting Plate for Transmission Line

Additional Info

PackagingStandard export packaging or according to customer requirements

Productivity10000

TransportationOcean,Air

Place of OriginJinan, Shandong

Supply Ability10000 pieces per month

PortQINGDAO,SHANGHAI,TIANJIN

Payment TypeL/C,T/T,D/P

IncotermFOB,CFR,CIF

Product Description

Product name:

Galvanized DB Adjusting Plate for Transmission Line



Product description:

Power fitting Db Type Adjusting Plate is one Steel Plate with many holes but different hole distance. DB adjusting plate is applicable to insulation fitting for adjusting the length of twin-connecting or parallel-connecting insulator string through series connection with insulator string. Adjusting Plate is used in overhead Link Fitting. The material of DB adjusting plate is carbon steel. The technology of DB adjusting plate is hot forged casting polished. We can also produce the products according to customer's requirements. Any question, feel free to contact with us.


Details of Galvanized Adjuster Plate



  DB Adjusting Plate

Galvanized Adjuster Plate



Stable design

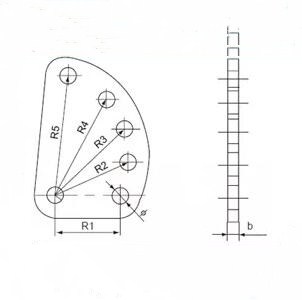

Catalog No.

Catalog No.

Main dimensions(mm)

Nominal Failure Load (kn)

Weight

(kg)

B

Φ

L1

L2

L3

L4

L5





DB-0770-170

DB-7

16

18

70

95

120

145

170

70

1.70

DB-1080-200

DB-10

16

20

80

110

140

170

200

100

2.70

DB-12100-240

DB-12

16

24

100

135

170

205

240

120

3.20

DB-16110-170

DB-16

18

26

110

125

140

155

170

160

4.10

DB-21120-180

DB-21

20

26

120

135

150

165

180

210

7.40



DB-25

30

33

120

140

160

180

200

250

11.50



DB-30

32

39

120

140

160

180

200

300

12.50



DB-60

42

51

135

160

185

210

235

600

21.60



DB-5024

38

45

140

165

190

215

240

500

18.50



DB-5032

38

45

140

185

230

275

320

500

14.40



DB-21G

20

26

120

135

150

165

180

210

6.20

DB-32120-200

DB-32G

38

33

120

140

160

180

200

320

9.20

Hot-dip galvanized steel.


Primary Competitive Advantages:
Country of Origin
Guarantee/Warranty
International Approvals
Price
Prompt Delivery
Service
Small Orders Accepted



Company Introduction
Shandong Vantage International Trade Co., Ltd. was established in 2014. The registered capital is 50 million. The company is located in Ji`nan, capital of Shandong, China. The company has a large number of excellent technicians and managers, mainly engaged in the import and export business of various steel products and fittings. The product variety,complete specifications and good quality. Our company is solemnly committed to the

majority of customers: reasonable price, short production cycle, considerate service.We look forward to cooperating with you.

 Company2

Packaging & Shipping
Packaging:
For the small capacity, it use carton.
For the big capacity, it use wooden case, wooden pallet, or as per customers' requirements.
Shipping:
If the number of goods is small, we usually use TNT, DHL, FEDEX, EMS and some express you offered.
If the number of the goods is big, usually we use the FWD you offered or we provided.
Either by sea or by air is OK.
